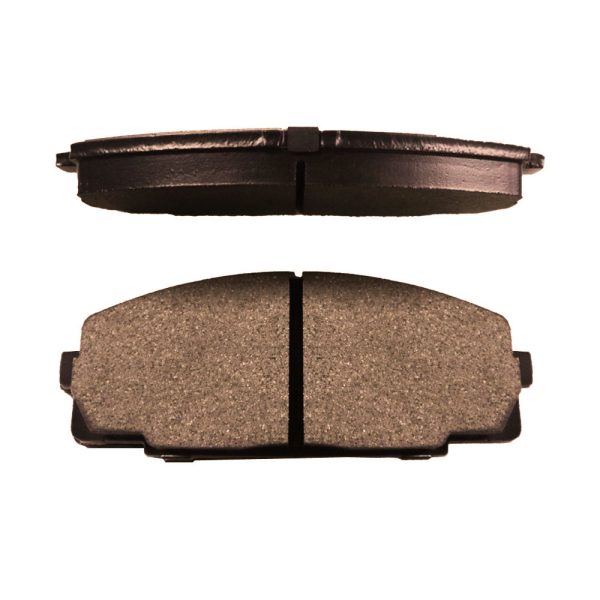

Front Brake Pads for Toyota Hiace Commuter Grandia (2005–2018) | 04465-YZZE9

With dimensions of 145.4 mm width, 56.9 mm height, and 15.5 mm thickness, they provide an accurate OEM-style fit and reliable braking power. Also compatible with several Hiace variants and Toyota van models, these pads are well-suited for extended road use and daily commercial driving. Available at KGCAR.PH.

Specifications

• Vehicle Fitment:
• – Toyota Hiace Commuter Grandia (2005–2018)
• – Also fits Toyota Granvia, Grand Hiace, Hiace Van, Hiace Regius, and Touring models
• OEM Part Number: 04465-YZZE9
• Brake Pad Type: Ceramic
• Position: Front Axle
• Brake System: AKB
• Width: 145.4 mm
• Height: 56.9 mm
• Thickness: 15.5 mm

Cross Reference Part Numbers

AKEBONO:
– A-247K / A-334K / AN-247K / AN-334 / AN-334K / AN-334KT / AN-707K / AN-707KT

BENDIX:
– DB1328 / DB1772 / DB2000 / 572367B

FMSI:
– D1344 / D1344-8455 / D1434-8552 / D2316-9552

HITACHI:
– NDP236 / NDP252 / NDP422

KASHIYAMA:
– D2064 / D2104 / D2251 / D225102

OEM / Others:
– 04465-YZZE9 / AY040-TY025 / V9115-0005 / V9118-A060 / 1Y0L-33-28Z

Compatibility and Application

These ceramic front brake pads are compatible with the following models:
– Toyota Hiace Commuter (2005–2018)
– Toyota Granvia / Grand Hiace
– Toyota Hiace Regius and Regius Touring
– Toyota Hiace Van

Built to match factory fit and braking performance, these pads are ideal for both personal transport and commercial fleet use.

Material and Performance

Constructed from high-grade ceramic friction material, these brake pads deliver smooth braking with reduced noise and minimal brake dust. The formulation is optimized for durability and stable performance, even under heavier loads or frequent braking.

Installation and Maintenance

These pads are manufactured to meet OE specifications, allowing for an easy drop-in fit into stock calipers. During installation, it’s best to clean the rotors and apply brake grease on contact points. Periodic checks help ensure safety and prolong both pad and rotor life.

Frequently Asked Questions

1. Will these pads work on a Toyota Hiace Commuter from 2005 to 2018?
   Yes. These brake pads are tailored for Toyota Hiace Commuter Grandia models within that year range using the AKB braking system.
2. Can I install them on other Hiace variants?
   Yes. These pads are also compatible with other Hiace versions including the Granvia, Regius, and Touring models listed above.
3. Why are ceramic pads a good option for vans?
   Ceramic pads offer quieter performance, lower brake dust, and better wear resistance, making them ideal for vans that handle daily driving and frequent stops.
